Domino J MasterBucker

£315.00

Domino J MasterBucker Set of 2 pickups for Jazzmaster

Out of stock

Category: .
Share:

Description

This set is now SOLD OUT and only available for purchase via our ‘Pickup Drops’ page. Please see our Pickup Drops page here which shows which pickups sets are coming in forthcoming ‘Drops’. News of when a batch these pickups will be released for purchase will be shown there first. To avoid disappointment and potentially missing out on a drop you can also hear about forthcoming drop dates by signing up for our Newsletter here.

Next drop date: Sunday 2nd August at 8pm BST. 3 x Domino J Sets will be available for purchase via our Drop Page at that time.

Our new creation is here: the Domino J MasterBucker – pure Jazzmaster tone for those who don’t wish to contend with the age old single coil hum conundrum.

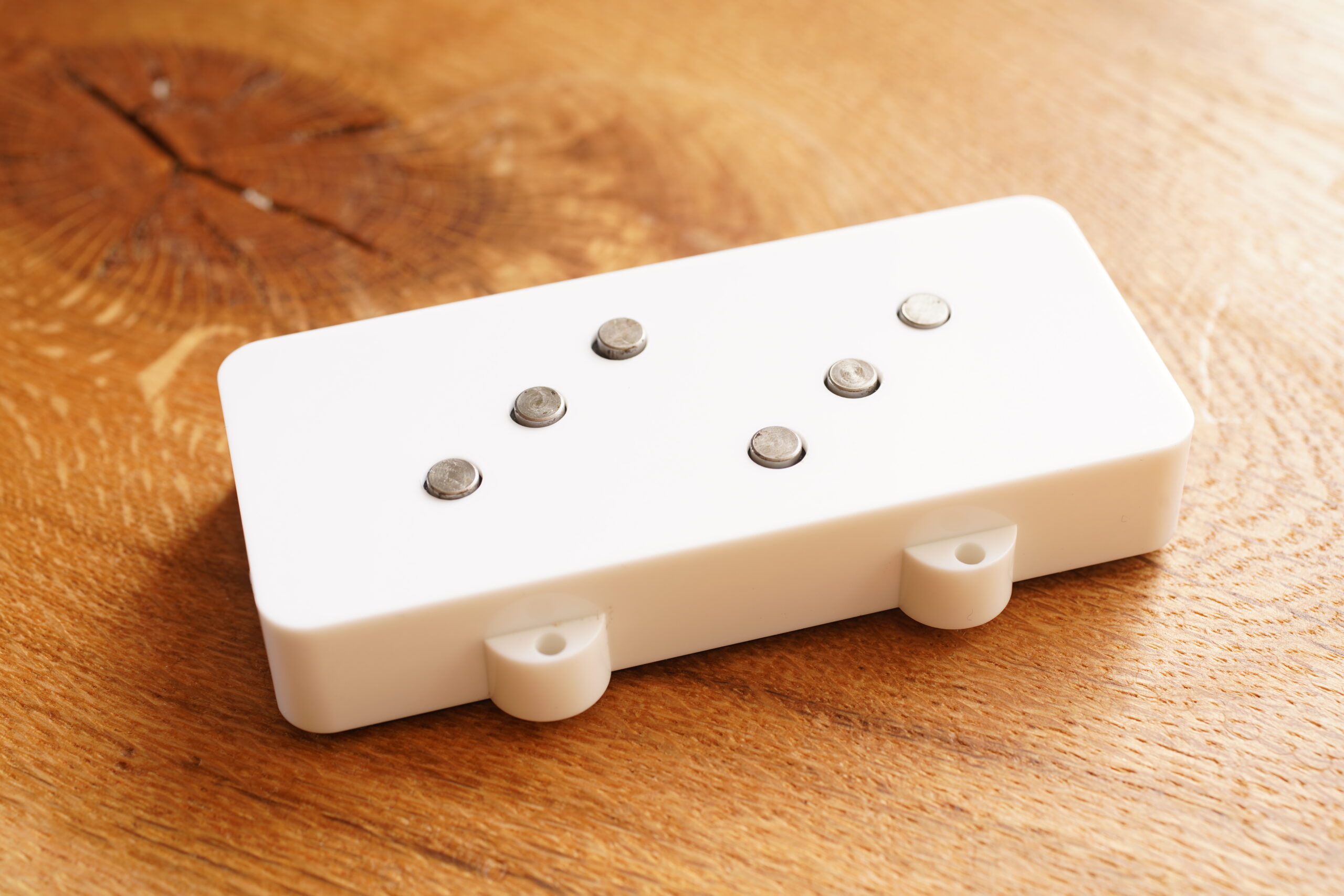

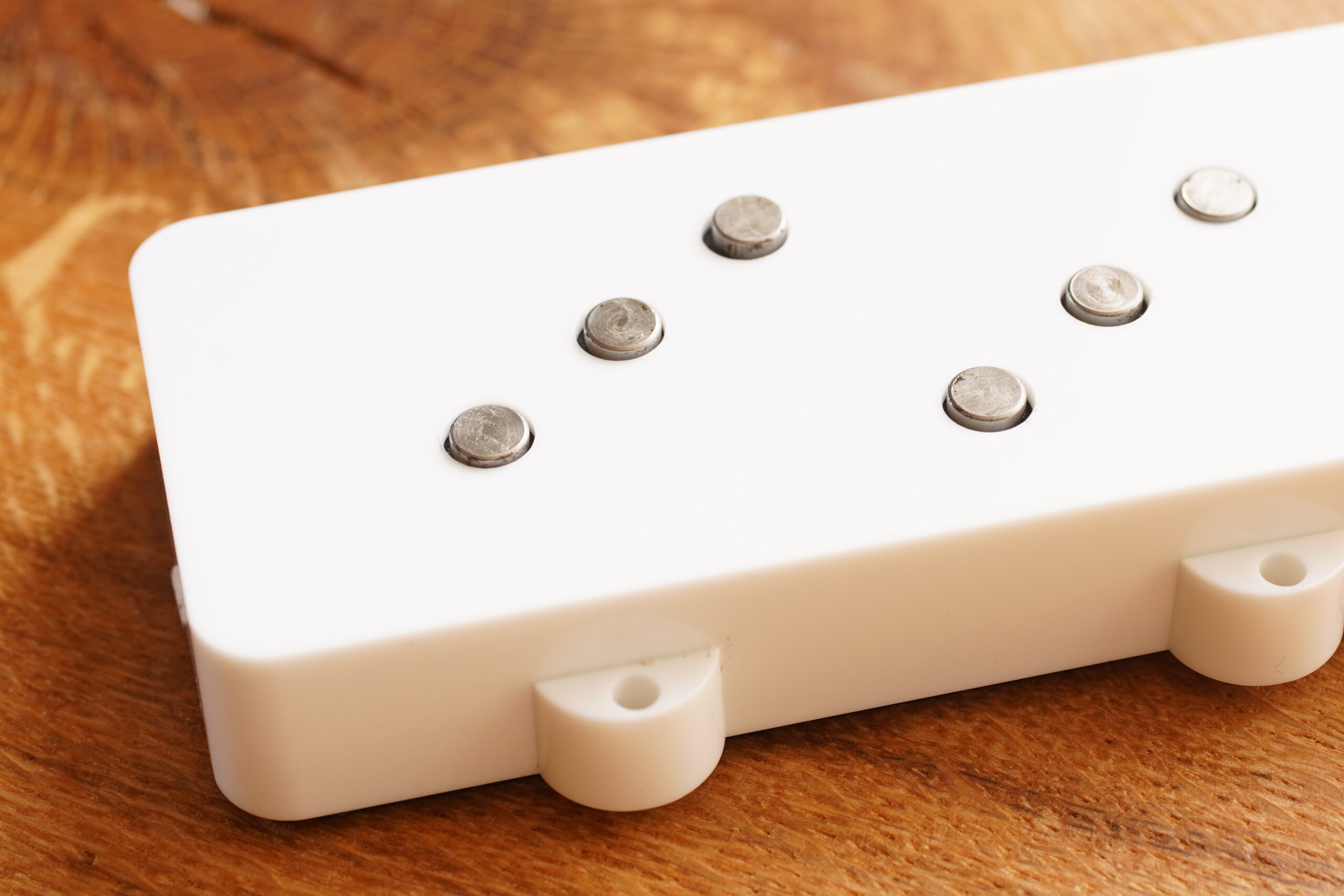

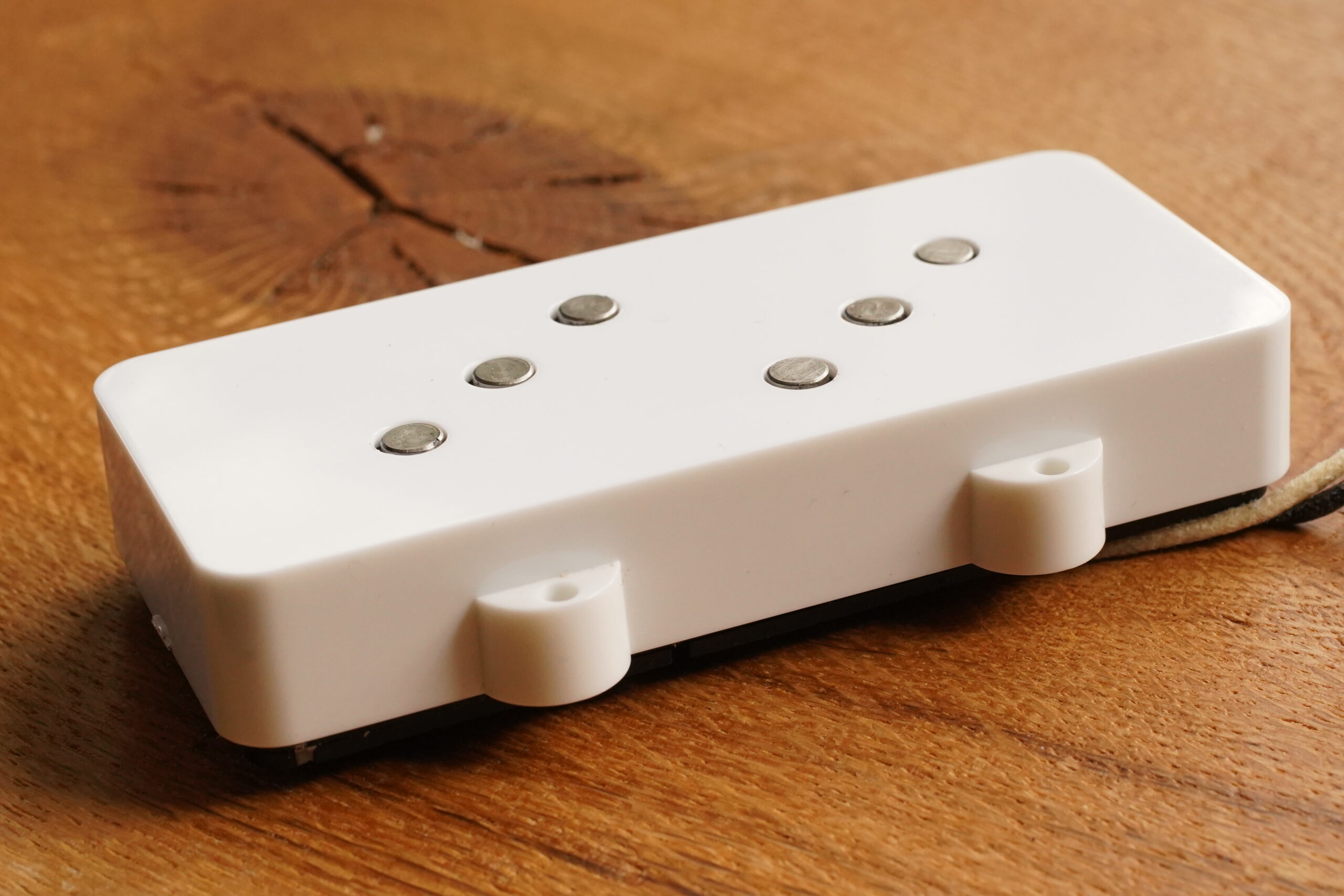

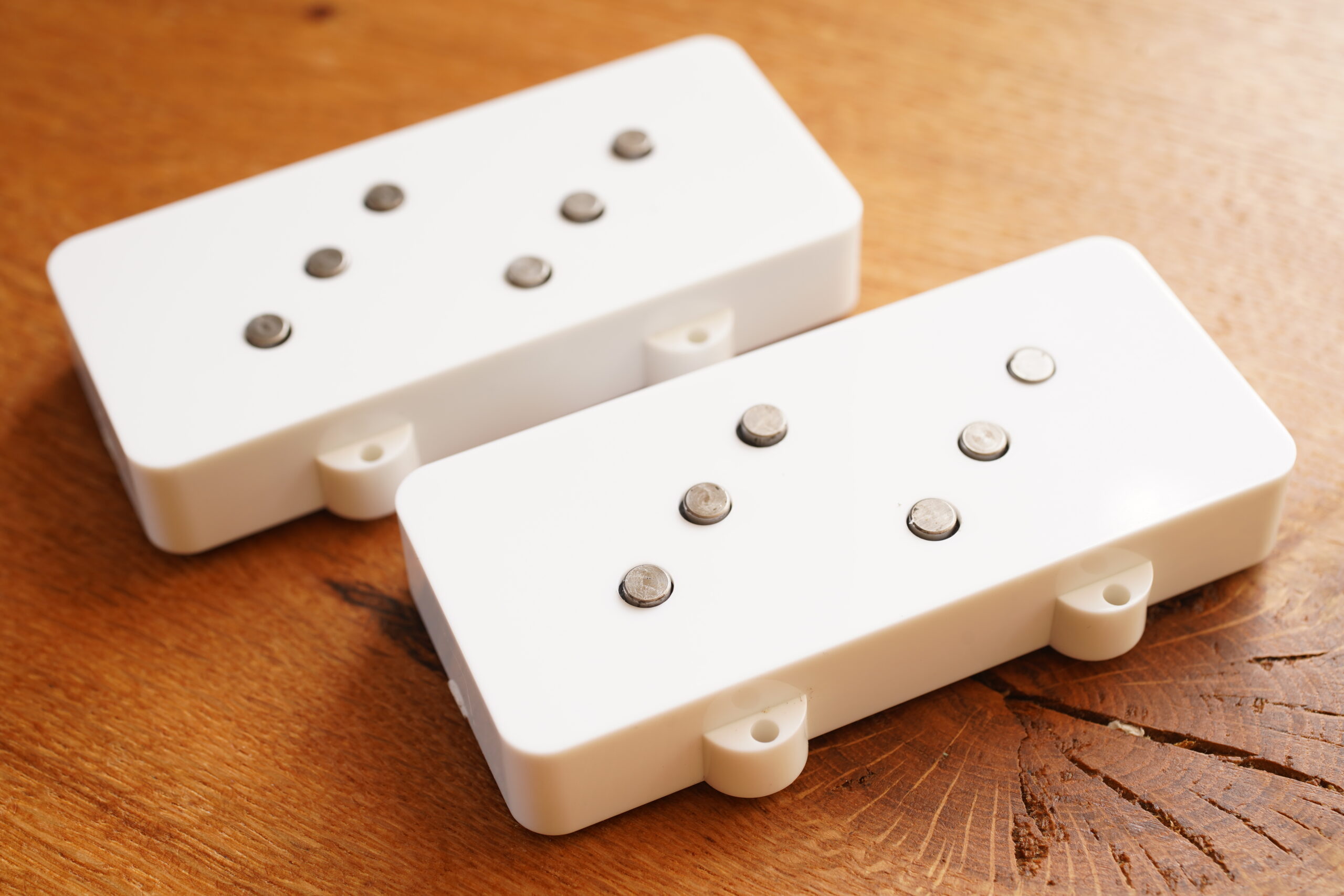

As well as making a visual statement for your Jazzmaster, the Domino J’s split coil on a diagonal design offers all the warmth and clarity of a classic JM pickup but in a humbucking design which we think Leo would approve of.

Inspired by his classic P Bass and Comanche split coil designs, the Domino J uses Alnico pole pieces and Heavy Formvar pickup wire for a warm and classic California tone.

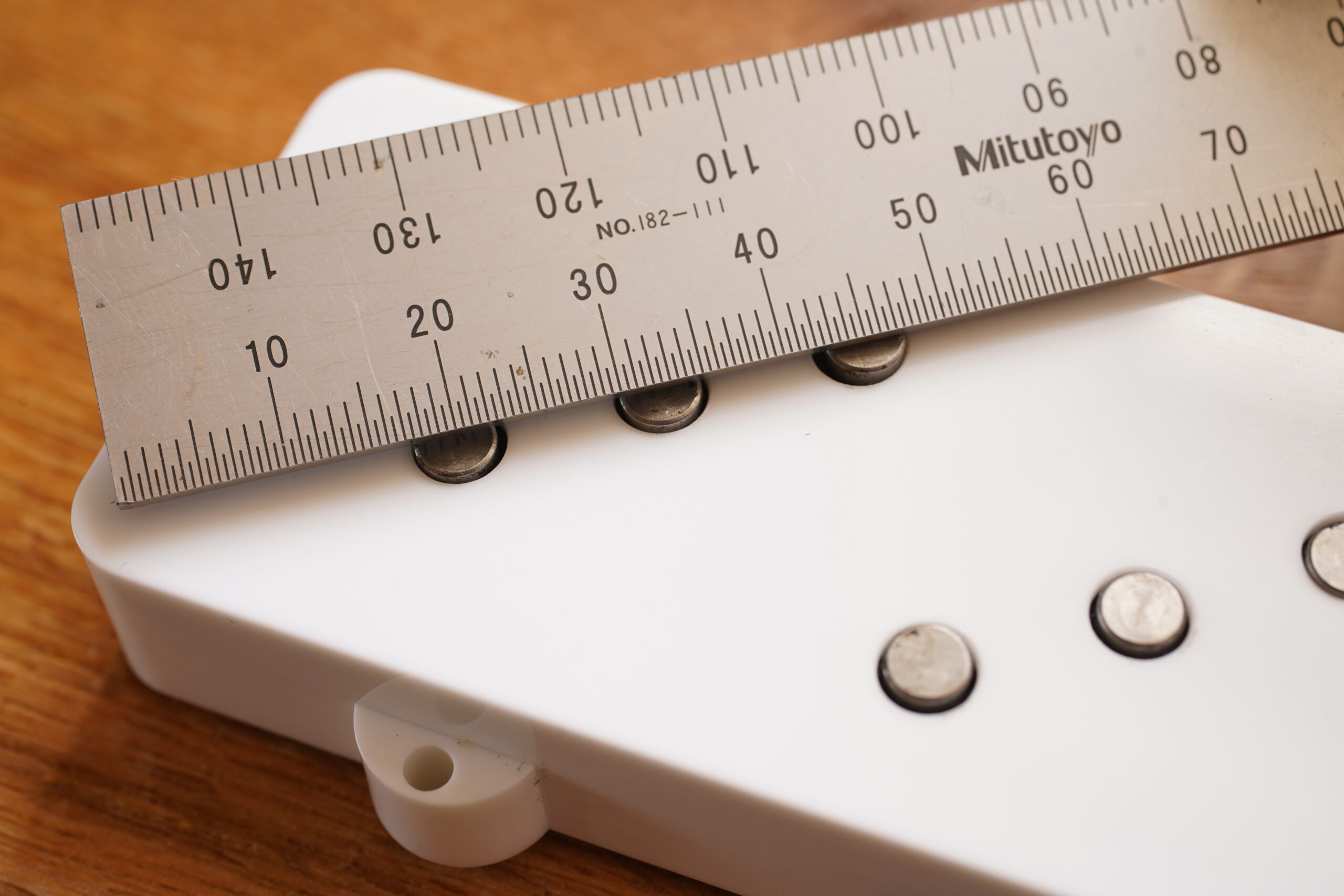

Its design follows the standard 51mm Jazzmaster spacing (left to right) which gives the normal 10.2mm horizontal pole piece to pole piece spacing but with the dual coils arranged in a diagonal fashion an effective string to string spacing of 12.5mm is achieved. The tonal effect of this is a gorgeous string separation coming through your amplifier with an almost hi-fi quality in the clarity.

Tonally the Domino J is even clearer than a normal Jazzmaster pickup with additional warmth and a thicker tone. Designed by us to offer humbucking within a classic Jazzmaster pickup footprint it’s best to think ‘Fender-y’ rather than ‘Gibson-esque’. Achieved with Alnico magnets rather than the usual humbucker ‘steel poles + bar magnet’ approach, the emphasis is on clarity and warmth for all your normal Jazzmaster tones ‘on steroids’ as it were rather than aiming to turn your beloved JM into a Les Paul or a Metal machine.

All the Jazzmaster tone and fun but with none of the hum!

Specification

  • Alnico IV Magnets
  • Handwound with 42 AWG Heavy Formvar Wire
  • Set of 2 (Bridge and Neck)
  • Vintage Cloth Hook up Wire
  • Split Coil Humbucker Design
  • Output: 9.1k (Bridge), 8.5k (Neck)
  • Comes with Covers (Standard JM Measurements), Mounting Screws and Spacing Foam (the Radioshop packaging box contains a foam inner which doubles as protection during transit and foam spacing material for under the pickup)
  • Wax potted for protection from microphonic feedback

Installation:

The installation of your Domino J MasterBucker pickup is just as straightforward as any Jazzmaster pickup installation with the same soldering to be performed as if it was a standard single coil design – one white (hot) wire to be connected to the switch and one black (ground) wire to be soldered to ground (usually to the top of the volume pot).

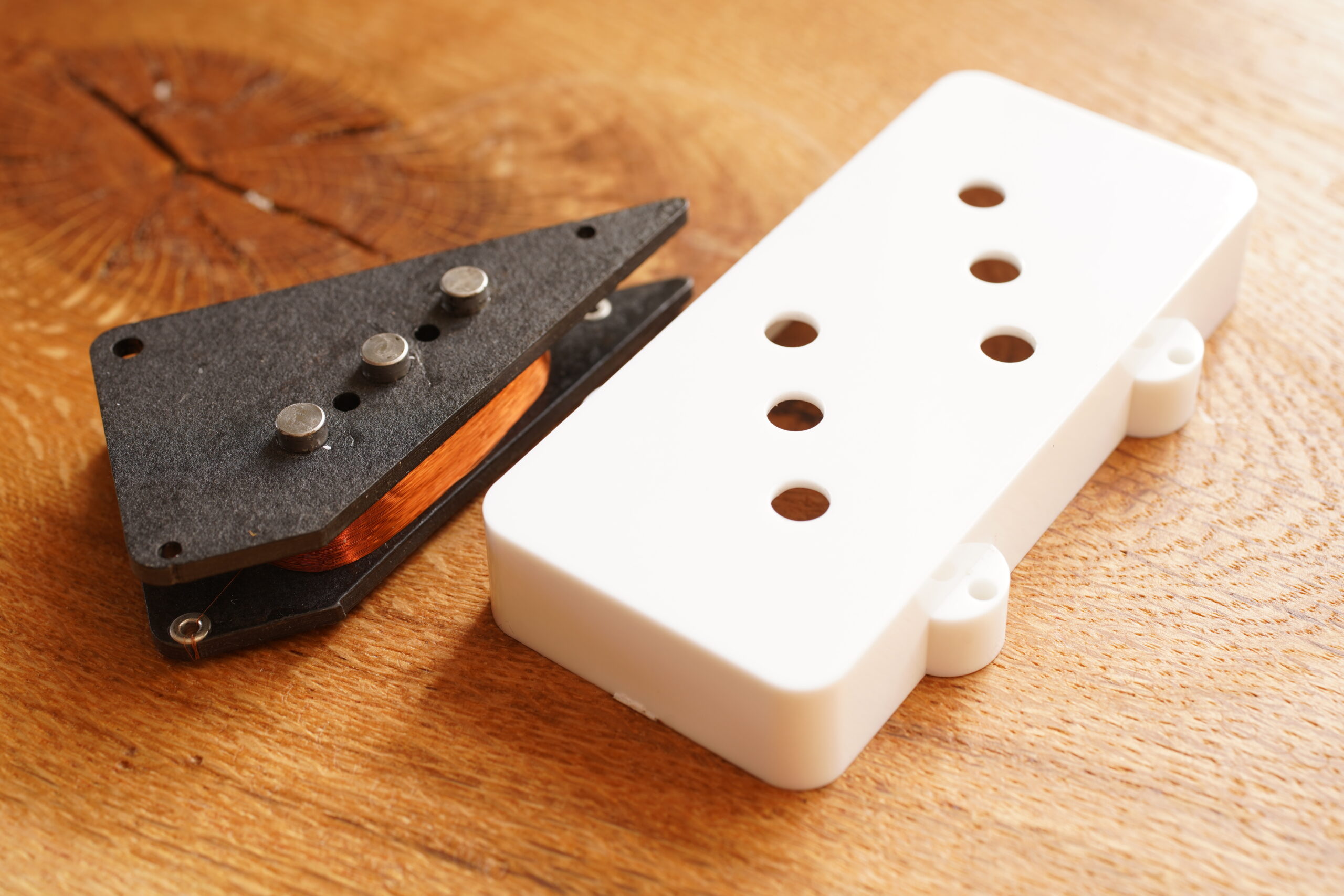

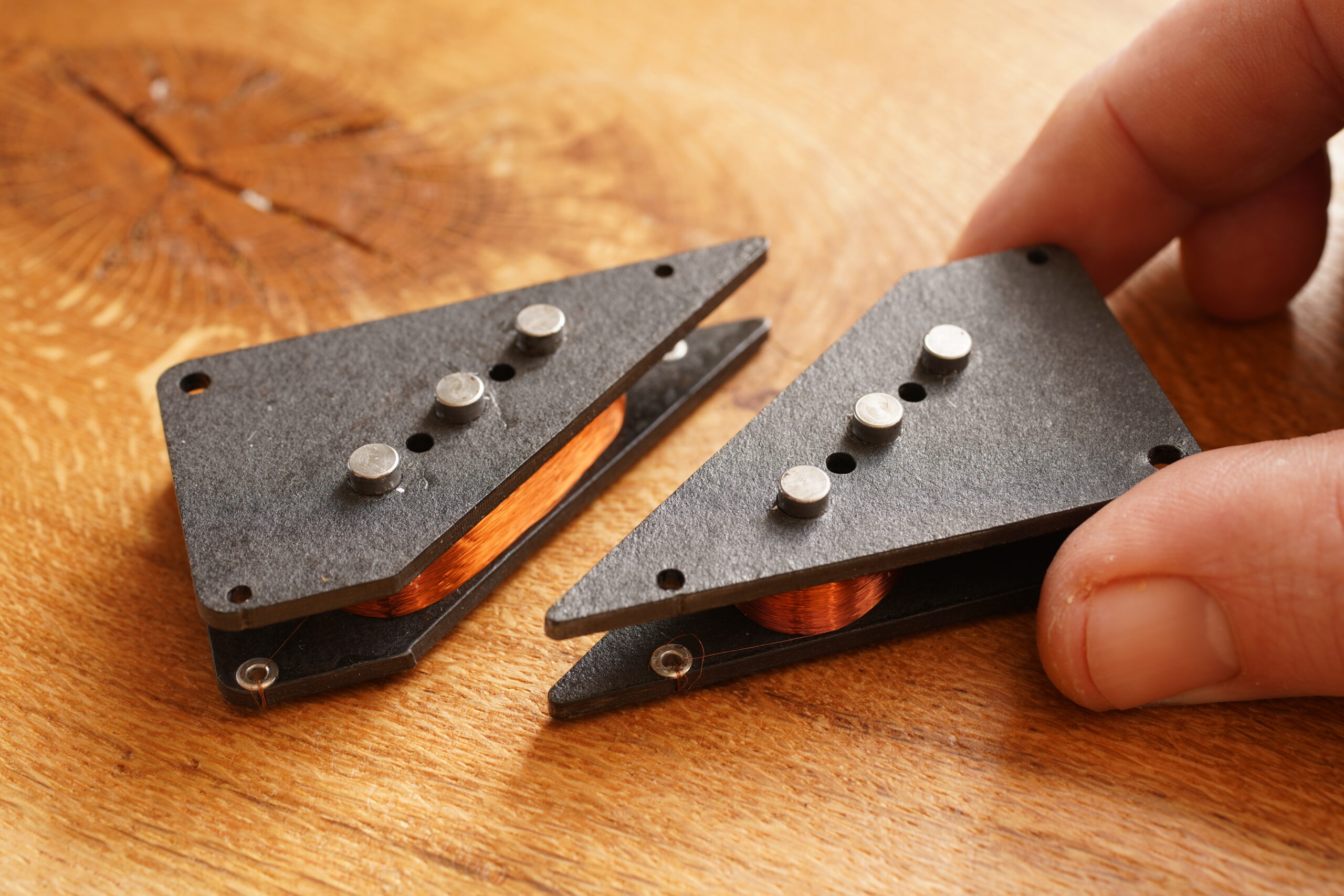

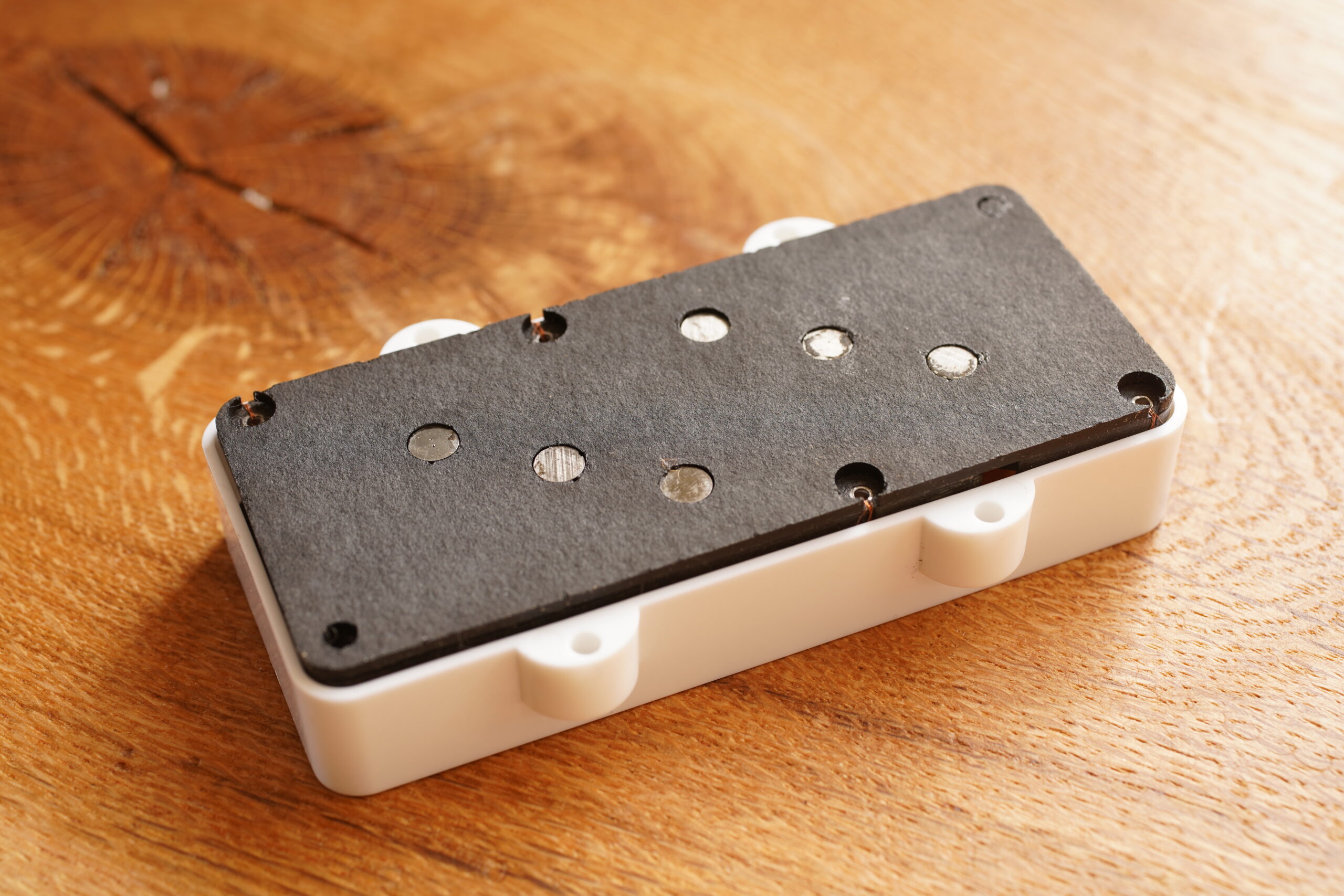

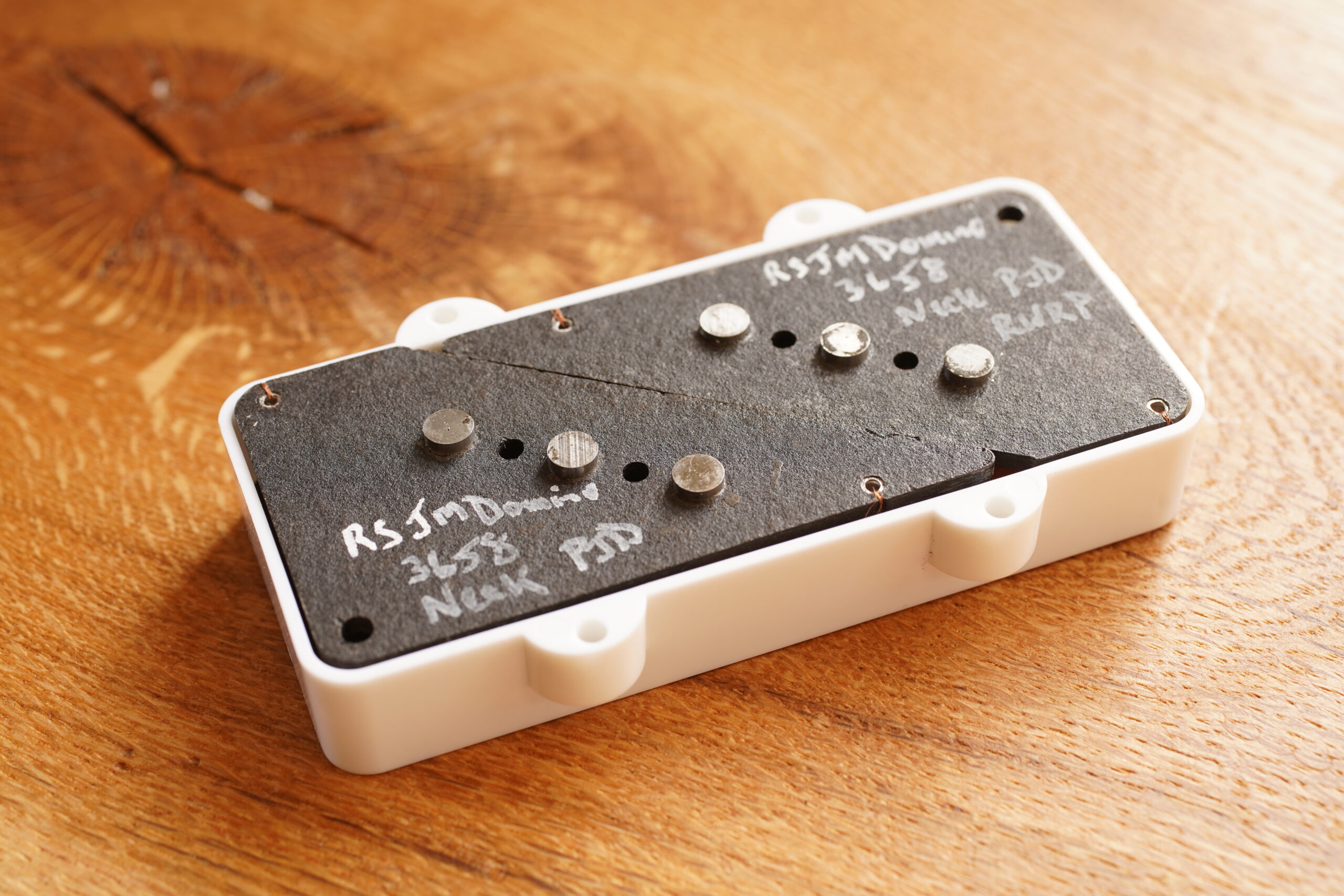

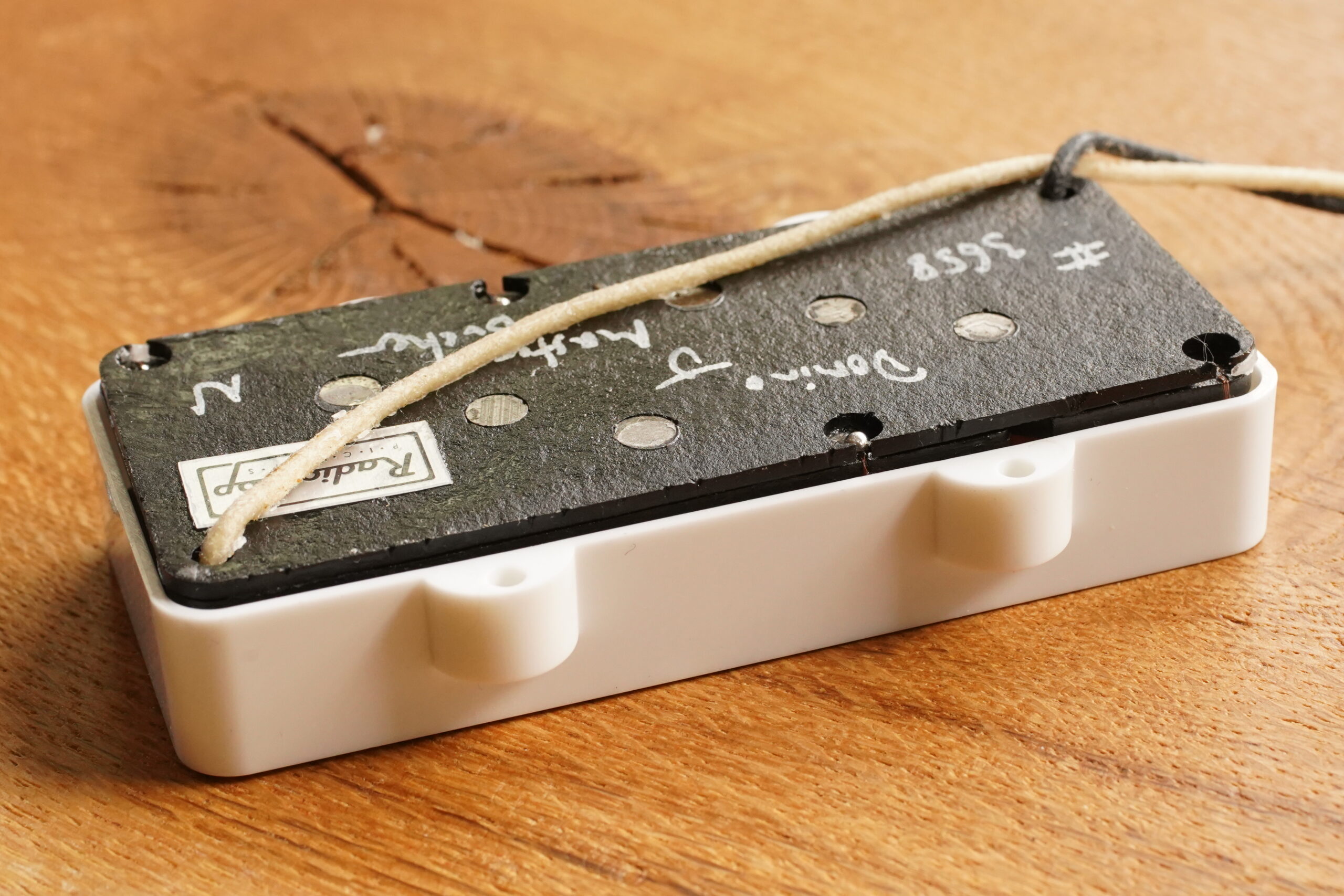

Being a split coil design in a Fender style it is possible to remove the cover and see and study the connecting wires between the two coils and move the coils away from each other slightly – exactly as it is possible to do with a classic Precision Bass pickup. We have designed a unique ‘snap on’ retainer piece of vulcanised black fibreboard for the underside of the pickup which helps ‘locate’ the coils into the position in which they are to be installed. This, in addition to the cover being installed, helps the coils to keep their shape and position and when installed under the downward pressure of the mounting screws it is not possible for the coils to stray from their intended position. Please however exercise caution when handling or inspecting the pickup without the retainer or cover fitted – as with all guitar pickups, connections between coils are always delicate and should be treated with care.
